When you glance at a shipping box, you may see a plain brown card. However, there is more going on with that material than meets the eye. The key to the power and the utility of corrugated packaging is what is known as the corrugated flute, the wavy layer between the outer surfaces that provides the power of protection for your boxes.
The knowledge of corrugated flute will aid you in selecting the optimal packaging to use when shipping your products, minimizing shipping expenses, and preserving the safety of your products. These tips will help you understand everything about the flute board, including the simple work of building, and also the selection of the appropriate cardboard thickness depending on your requirements and needs.
What Is a Corrugated Fiberboard?
Corrugated fiberboard is a paper-based material consisting of three main components: two flat linerboards (the outer surfaces) and a wavy middle layer called the flute or corrugated medium. This design produces a relatively stiff and lightweight material that safeguards the products in transit and warehouses.
The corrugated liners give a smooth surface on the outside, as well as inside of the board but the middle component, the flute paper, cushions, insulates and gives the board its structural strength. When these strata are cemented together with adhesive, an entirely stronger material is created than that of its elements.
Understanding Corrugated Board Flute
The corrugated flute is the heart of what makes this packaging material work. These wave-like arches are in parallel lines along a board. The flutes, when looked upside down, serve as cushions to protect your products from shock. When on their heels, they place themselves in stiff columns, able to bear up considerable weight, the reason why a pile of boxes can bear so many without caving.
The flute also protects against any changes in temperature and forms an air space, which adds to the thickness without necessarily increasing much weight. This design principle did not change much even after a century, since it just works.
NexGen Boxes: Precision-Engineered Corrugated Solutions
In NexGen Boxes, we are the company that can help companies through such decisions on corrugated packaging with the help of professional advice and tailor-made options. You may require custom mailer boxes to house your e-commerce brand, custom cosmetic packaging boxes to display in the retail store, custom rigid boxes to house luxury products, or custom apparel packaging to house subscription services, our team will collaborate with you to determine the best flute profile to match your needs.

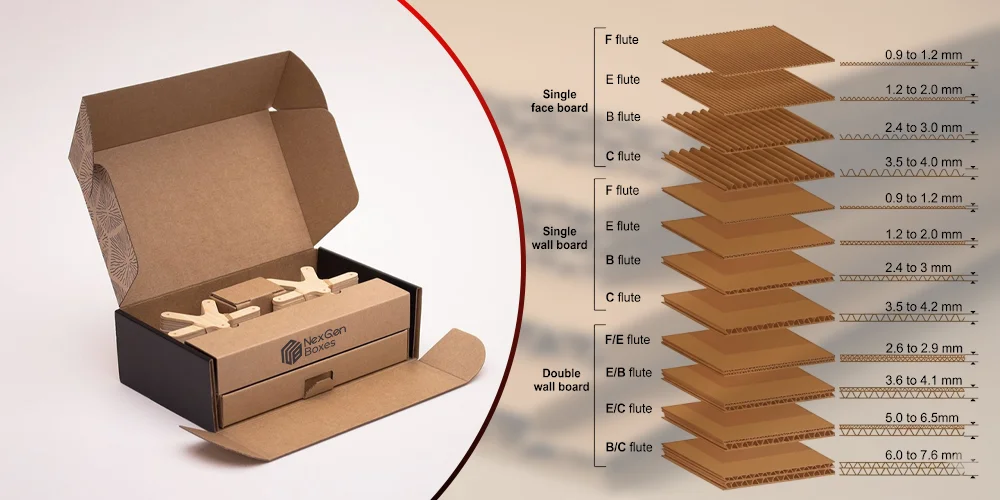

The Five Main Corrugated Flute Sizes
Corrugated flute sizes come in five standard profiles, each named with a letter. These letters, however, mark the order not of size, but of the order of invention of each type of flute, as you might expect. This is what you have to know about each of them.

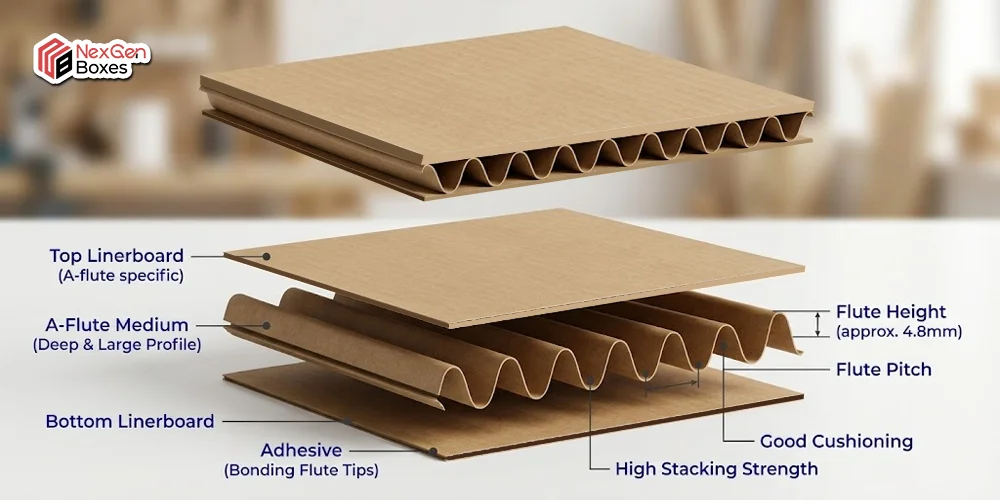

1. Thickest A-Flute
A flutes cardboard was the first corrugated flute design and remains the thickest option available today. Having an approximate thickness of the A flutes of 5 millimeters (1/4 inch), this profile has nearly 33 flutes in one linear foot.
A flutes offer good cushioning qualities due to its huge thickness of corrugated board. The increased arch height provides more air space between the liners as a sure form of protection for delicate objects. Flute cardboard also provides good compression resistance, and therefore it is suitable in piling up heavy loads.

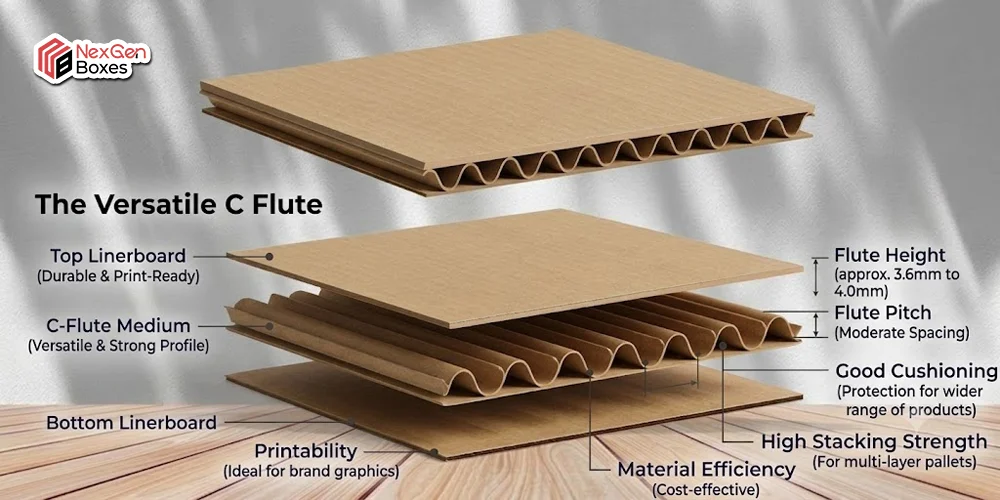

2. Versatile C Flutes
Although both A and B flutes came into being earlier, C flute’s cardboard is by far the main popular corrugated packaging material, manufacturing approximately 80 percent of all corrugated containers. The thickness of the C flutes is in the range of 3/16 inch (4millimeters), and it has around 39 flutes per linear foot.
Industry data from the Fiber Box Association indicates that C-flute corrugated boards account for approximately 80% of all shipping containers in North America due to its optimal balance of strength-to-weight ratio and cost-effectiveness.
C flutes reach a sensible compromise in terms of cushioning as well as space comparison. The thickness of the corrugated cardboard offers decent stacking capability and crush resistance, and fits into storage space with acceptable demands. C flutes cardboard is also a reasonably acceptable basic graphic and text printing surface.

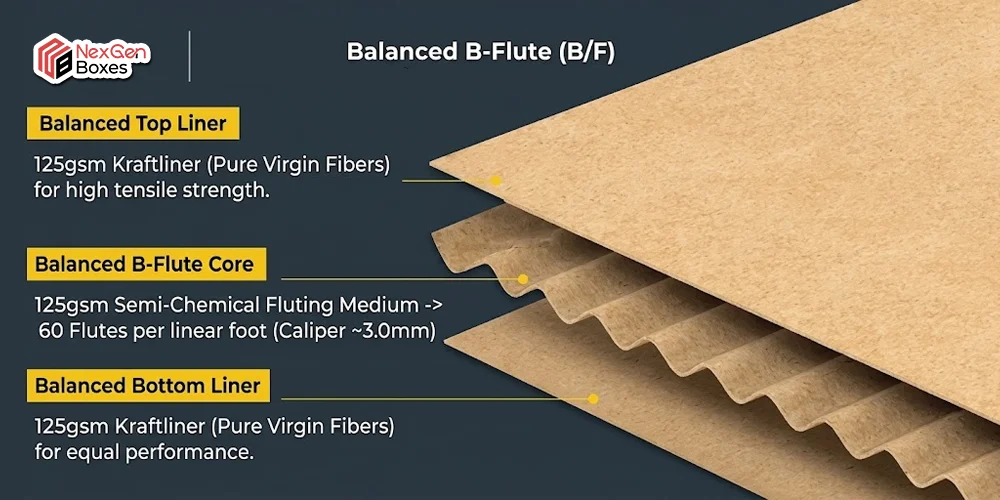

3. Balanced B Flutes
B flutes cardboard is placed in the middle of the cardboard thickness in cardboard thickness which is at about 1/8 inch (3.2 millimeters) with a cardboard thickness containing about 47 flutes per linear foot. The reduced arch height results in additional points of contact with the linerboards in the flutes, which makes the surface flatter and more stable.
B flutes cardboard is suitable to package canned foods, carriers of beverages, and consumer goods along highly automated packing conveyors. It is also used as an inner packaging ingredient, such as dividers, partitions. When you require a type of packaging that affords protection as well as visual appeal, B flutes will offer the quality of printing you require, particularly in custom mailer boxes where branding is crucial.

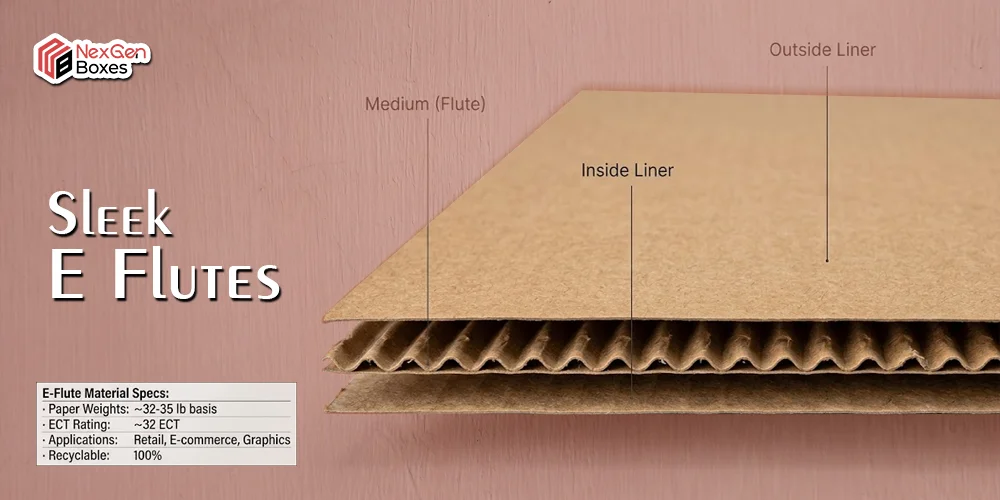

4. Sleek E Flutes
E-flute cardboard is a great reduction in cardboard thickness, having as few as 1/16 inch (1.6 millimeters) on about 90 flutes per linear foot. This slim profile forms a material capable of competing with old-fashioned folding carton paperboard, possessing the protective capabilities of corrugated construction.
E-flute cardboard has received a ravenous application in retail packaging of cosmetics, small electronics, and specialty products. Its slim design will enable it to be folded in complex folds and designs, yet it offers cushioning protection. A lot of companies that have transitioned their paperboard to corrugated use E flutes due to the extra leverage it provides without affecting the look, and therefore it is ideal in wrapping custom cosmetic packaging boxes and other high-quality retail services.

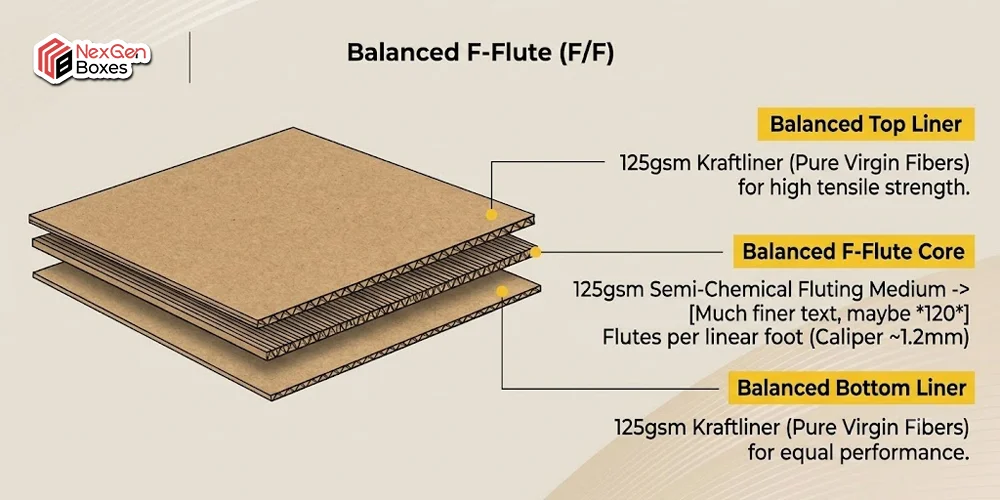

5. Thinnest F Flutes
At precisely 1/32 inch (0.8 millimeters) in thickness, with a flute spacing of about 125 across the linear foot, is F flutes cardboard, which has the greatest number of flutes per linear foot (around 125). This microflute forms an extremely hard material of very low thickness.
Flute cardboard is used in specialty packaging such as cosmetic packaging, point of purchase display, fast food clamshell packages, and shoe boxes. F flutes have found great acceptance in the competitive retail packaging spaces in Europe. The lower fiber content also implies lower material waste, which would be a welcome change in environmentally conscious brands.
Choosing the Right Corrugated Flute Sizes for Your Needs
Selecting the appropriate flute paper profile depends on several factors:
- Weight and Fragility of the Product: WA and FB are typically required to be heavier and therefore require thicker flutes, such as A or C. The cushioning of A or C flutes is good with fragile products. It is possible to use thinner profiles, such as E or F, on lighter items.
- Shipping Method: Some products to be shipped individually may require burst strength (A or C flutes), and palletized assignments favor the use of stacking strength (any of the flutes can be used, as long as it is not too heavy).
- Storage considerations: In case the available warehouse space is small or costly, thinner flutes such as B, E, or F lower storage volume. The group of flutes that are thicker needs more space but affords more protection.
- Printing Requirements: B, E, or F flutes should be used in cases of high-quality graphics that require flat surfaces. Text or logos is good with C or even A flutes.
- Budget Restraints: Smaller flutes are typically less material-intensive and can be less expensive. Nevertheless, if the profile is too thin, the product may end up being spoiled and returned, which may be even more expensive.
Practical Benefits of Understanding Corrugated Thickness
Corrugated board flute type knowledge provides actual business benefits:
- Cost Optimization: You will be able to prevent either overpackaging (wasting money on unnecessary material) or underpackaging (losing money on damaged goods and returns).
- Storage Reliability: Selecting the right Corrugated Cardboard thickness assists in optimizing the warehouse space usage and minimizing the storage expenses.
- Product Protection: It is perfect to match the cardboard thickness to the needs of your goods, as it ensures that the goods will remain intact, your reputation, and your quality will be preserved.
- Brand Presentation: Appearance Counts When it really counts, when it is important to have the right flute profile, you can choose the flute where your packaging will look business, and will exhibit your brand. This is more so critical in custom rigid boxes, where a sense of high-quality presentation is a competitive motivator.
- Sustainability: Minimum Age Corrugated thickness is created to cut down on material usage and environmental effects as well as offering protection without jeopardizing the protection.
Matching Flutes to Your Industry
Different industries benefit from specific corrugated flute sizes based on their unique requirements:
- E-Commerce and Subscription Boxes: B or E flute are ideal in this case, as they are small-sized packs with good printability, which would be helpful in the custom apparel packaging and other direct-to-consumer delivery packages.
- Food Service and Bakery: C flutes are beneficial in both assuring coverage and a sufficient printing area on packaging of branded food products, whereas F flutes are applicable in specialized products such as to-go containers.
- Retail Display: Both E and F flutes work well in retail space where shelf space is a key element and where product protection is required without the use of bulk.
- Industrial Shipping: It uses A and C flutes (or double-wall constructions), which deal with heavy cargo and the hard treatment during transportation.
- Luxury Products: E flutes in high-quality materials provide packaging that is substantial and yet in graceful proportions.
Making the Right Choice for Your Business
A good place to begin is an evaluation of the needs of your product: What does it weigh? How fragile is it? How will it ship? What are your printing needs? Are you short of storage facilities? Answering these questions points you toward the appropriate corrugated flute sizes.
The corrugated industry has never given up on innovations, although these five standard flute profiles are the basis of modern shipping packaging. Knowing what everyone is, you can find solutions to corrugation to cover your products, manage its price, and help your brand- every shipment matters.
